High Security Hot-dipped Galvanized Metal Crowd Control Barrier with 5000N Vertical Load and 1.1*2.2m Panel Size
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| フレーム | 丸いパイプ | フィンシュ | 熱いディップ亜鉛めっき |
|---|---|---|---|
| 横棒の数 | 2 | 垂直負荷 | 5000N |
| 応用 | 群衆制御のためのイベントなど | フレームの管 | 32mm |
| パイプのスッキンさ | 1.5mm | パネルサイズ | 1.1*2.2m |
| 脚 の スタイル | 爪 の 足 | 立ってる | OD16MM、OD19MM、OD25MM、OD32MM、OD48MM |
| 保証 | 5年 | チューブの厚さ | 1.5mm |
| チューブの直径 | 38mm | 塀のサイズ | 1100×2100mm |
| フレーム素材 | 金属 | ||
| ハイライト | 5000N Vertical Load Crowd Control Barrier,1.1*2.2m Panel Size Pedestrian Barrier,5 Years Warranty Road Barrier |
||
製品の説明

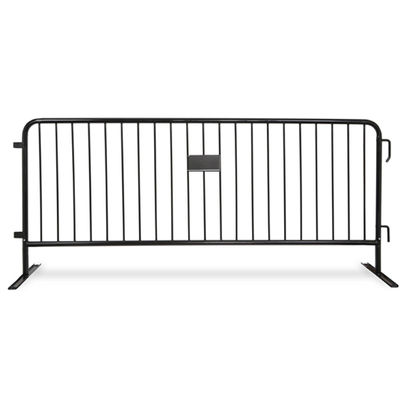

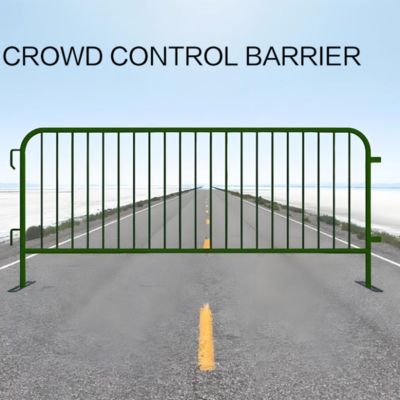

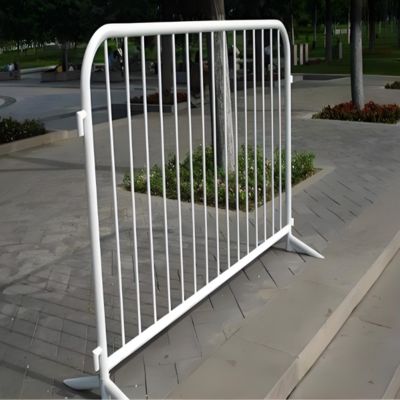

High Security Hot-dipped Galvanized Metal Crowd Control Pedestrian Barrier
Crowd Control Barrier Description
Our high-security crowd control barriers feature a sturdy construction with elegant appearance. Made from bent pipes, these barriers offer faster installation compared to traditional fences by combining panel and post installation. The feet can be customized in various shapes (steel feet, triangle shape, bent ones) and designed as either permanent welded or removable types.
Specifications - Normal Size
- Panel Size (mm): 914x2400, 1090x2000, 1090x2010, 940x2500
- Frame Tube (mm): 20, 25, 32, 40, 42 OD
- Frame Tube Thickness (mm): 1.2, 1.5, 1.8, 2.0
- Vertical Tube (mm): 12, 14, 16, 20 OD
- Vertical Tube Thickness (mm): 1.0, 1.2, 1.5
- Tube Space (mm): 100, 120, 190, 200
- Surface Treatment: Hot dipped galvanized or Powder coated after welding
- Feet Options: Flat feet, Bridge feet and Tube feet
European Crowd Control Barrier Specifications
| Panel Length | Panel Height | Frame tube | Inner tube | Inner tube distance | Feet |
|---|---|---|---|---|---|
| 2m 2.2m 2.5m |
900mm 1000mm 1100mm 1200mm |
Φ38x1.5mm | Φ16x1.2mm Φ16x1.5mm Steel rod:φ12mm |
110mm 120mm 150mm |
Flat feet: 50x580x6 mm Bridge feet Length: 67.5x50cm V shape feet height:270mm Φ38x1.8mm Φ38x2mm Φ48x1.5mm Φ48x2mm |
Surface treatment: 1. Hot-dipped galvanized wire and tube welded 3. Hot-dipped galvanized after black wire and tube welded
Product Drawing
Feet Style Options
Welded Fixed Feet:
Permanently welded to the frame for high security applications. Ideal for public events where quick installation and dismantling are required. Perfect for directing foot traffic.

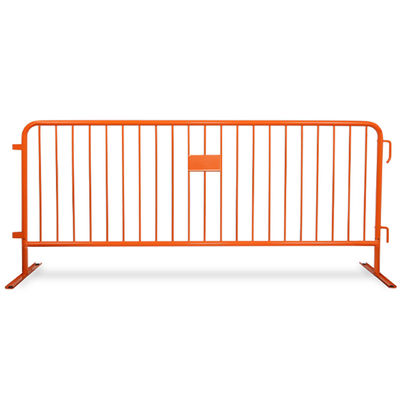

Flat Feet:
Removable and replaceable flat legs bolted to panels. Offers easy storage, transportation and stacking. Flat design minimizes trip hazards while providing stability.

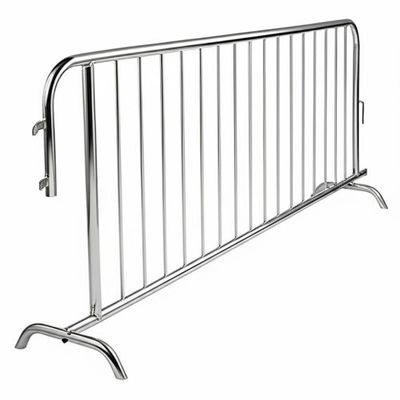

Bridge Feet:
Features bridge-shaped removable legs for maximum stability. The most secure option for demanding applications.
Key Advantages
- Fully hot dipped galvanized after welding for maximum durability
- Weather resistant construction for long-term outdoor use
- Lightweight yet strong enough for effective crowd control
- Removable feet option for easier transportation and storage
Main Features
- High-strength steel pipe construction for impact resistance
- Inserted uprights before welding for durable structure
- 360° full hand welding for optimum strength
- Hot dipped galvanized or powder coated for outdoor protection
- Hook and loop interlocking system prevents damage
- Flexible structure for various passage configurations
Applications
- Temporary fencing for construction sites and private property
- Residential housing site security
- Public event crowd control (sports, concerts, festivals)
- Swimming pool safety fencing
Packaging & Delivery
We offer flexible packaging solutions to meet your requirements:
- Standard Bulk Packing: Space-saving option that reduces packaging costs and freight
- Custom Pallet Packaging: Higher cost but easier loading/unloading, saving labor costs
- Custom labels available
Our factory features a large, clean, dry warehouse capable of providing short-term storage services.
Why Choose Us
LAIDI Wire Mesh Company has established an excellent reputation in American and Australian markets. With enough fencing produced to circle the earth, we value every client relationship by maintaining consistent quality and service. We specialize in adapting products to local styles and specifications, and look forward to expanding our global market presence with professional partners.
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: What certificate do you have?
A: We have ISO and CE certificate.
Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
Q: How long is the warranty period?
A: All of our products have one year warranty.
Q: What's the main market of your company?
A: We have customers all over the world.
Q: How much production capacity of your company one year?
A: This depends on your needs.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Anping county, Hengshui City, Hebei, China, near Shijiazhuang Airport and Beijing Airport. We offer transportation service.
Company Information
Anping LaiDi Wire Mesh Products Co.,Ltd. is a leading manufacturer of wire mesh products located in Anping County, the famous Wire Mesh Hometown in China. Certified with ISO 9001, ISO 14001, and GB/T 28001 standards, we have exported quality products worldwide for over 20 years.
Our product range includes: Wire mesh fence, Metal fence, Palisade fence, Temporary fence, Welded gabion, Hexagonal wire netting, Welded wire mesh, Livestock yard products, and more.
Our mission is "Quality First, Customer First, Reputation Above All". All products undergo rigorous testing before shipment to ensure only qualified products reach our customers.
