High Tensile Strength Hot-dip Galvanized 1.5m Height Cattle Fence for Livestock and Farm Use
商品の詳細
| 製品名 | 畜牧場のフェンス | 起源の場所 | 河北省、中国 |
|---|---|---|---|
| 材料 | Q195 | 表面処理 | 亜鉛メッキ |
| パッキング | 金属パレット | 積み込み口 | 天津港 |
| 身長 | 1.5m | 長さ | 50メートル |
| キーワード | シカの塀 | フェンススタイル | 織物 |
| 線径 | 2.0mm | Moq | 100ロール |
| ハイライト | High Tensile Strength Cattle Fence,Hot-dip Galvanized Livestock Fence,1.5m Height Farm Fence |
||
製品の説明
High Tensile Strength Hot-dip Galvanized Livestock Fencing
This versatile woven wire fencing features horizontal and vertical wires joined with secure knots, creating a safe containment solution for livestock. The grid pattern effectively keeps predators out while securely containing large animals like horses and cattle.
Product Specifications
Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low carbon cold galvanized wire

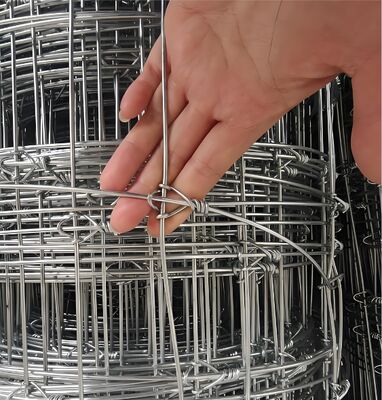

Knot Types: Hinge Knot & Fixed Knot
Mesh Wire Diameter: 1.8mm~2.5mm
Edge Wire Diameter: 2.0mm~3.2mm
Opening Sizes: Warp: 15-14-13-11-10-8-6 cm; Weft: 15-18-20-40-50-60-65 cm
Height Options: 0.8m, 1.0m, 1.2m, 1.5m, 1.7m, 2.0m, 2.3m (custom sizes available)
Length Options: 50m-100m (custom lengths available)
Knot Types: Hinge Knot & Fixed Knot
Mesh Wire Diameter: 1.8mm~2.5mm
Edge Wire Diameter: 2.0mm~3.2mm
Opening Sizes: Warp: 15-14-13-11-10-8-6 cm; Weft: 15-18-20-40-50-60-65 cm
Height Options: 0.8m, 1.0m, 1.2m, 1.5m, 1.7m, 2.0m, 2.3m (custom sizes available)
Length Options: 50m-100m (custom lengths available)
Surface Treatment Options
Class A: Hot dipped galvanized hinge joint field fence (zinc coated: 220-260g/m²)
Class B: Hot dipped galvanized hinge joint field fence (zinc coated: 60-70g/m²)
Class C: Electro galvanized hinge joint field fence (zinc coated: 15-20g/m²)
Class B: Hot dipped galvanized hinge joint field fence (zinc coated: 60-70g/m²)
Class C: Electro galvanized hinge joint field fence (zinc coated: 15-20g/m²)
Technical Specifications Table
| NO. | Specification | Weight (kg) | Bottom (mm) | Dia. (mm) |
|---|---|---|---|---|
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 |
Key Features
- Corrosion-Resistant Material: Made of galvanized steel with PVC coating for long-lasting durability
- High Tensile Strength: Withstands heavy impacts from livestock and harsh weather conditions
- Flexible Design: Adapts to uneven terrain while maintaining structural integrity
- Animal-Safe Grids: Smooth, secure mesh minimizes injury risks to cattle and horses
- Easy Installation & Maintenance: Lightweight yet sturdy, requiring minimal upkeep over time
Product Advantages
- Costs the same as a 5 strand barbed wire fence
- Stronger than a 9 gauge hinged joint or barbed wire fence
- Lasts 3 times longer than traditional hinged joint fencing
- Maintains tension and shape even during temperature changes
- Uses up to 40% fewer posts compared to barbed wire
- Prevents cattle from putting their heads through the fence
- Kinder to animals with less damage to animal hides
- Negligible maintenance requirements
Applications
Ideal for goat, cattle, deer, sheep, and pig containment. Suitable for grassland, pastures, ecological protection projects, forestry, highway, garden orchard, airport & roadside protection, high fence ranch management, and field borders.
Frequently Asked Questions
Are you a manufacturer?
Yes, we have been providing products in this field for 20 years.
Is customization available?
Yes, we can customize according to your detailed drawings.
Can I get a sample of your product?
Yes, free samples are available upon request.
What are your payment terms?
Typically 30% deposit, with 70% balance paid before shipment.
What is your usual delivery time?
Stock products: 7 working days after payment. Custom products: 20-30 days after payment.
Company Information
Anping Laidi Wire Mesh Product Co., Ltd is located in Anping County, China's wire mesh hub. We specialize in manufacturing various wire mesh fences and related products with over 10 years of export experience. Our products are sold worldwide, including Canada, America, Dubai, India, Australia, Kenya, Tanzania, and other countries.
