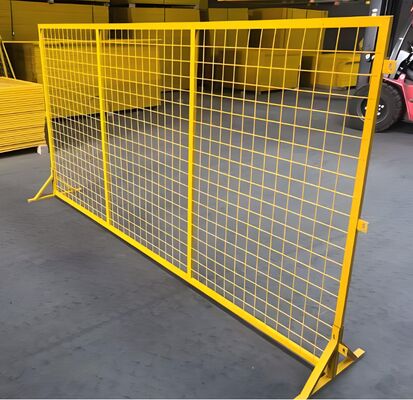

Powder Coated Low Carbon Steel Metal Wire Mesh Fencing with 50x50mm Mesh Opening for Workshop Isolation
商品の詳細
| 材料 | 低炭素鋼 | 色 | 黄色 |
|---|---|---|---|
| 製品名 | 倉庫の鉄フェンス | ブランド名 | LaiDi |
| スタイル | 産業用 | 身長 | 1～2.5m |
| 長さ | 2〜3m | ワイヤー | 4mm |
| メッシュ開口部 | 50X50mm | 役職 | 角柱 |
| パッキング | 金属パレット | 使用法 | ワークショップや倉庫 |
製品の説明
Powder Coated Robot Boundary Wall Metal Wire Mesh Fencing Of Workshop Isolation Net
The workshop fence is widely used in workshop warehouses or between market stalls to prevent damage. This utility model offers advantages including small floor area, increased effective space, strong light transmission, and high safety. The coating is uniform and plump with soft, bright colors, providing excellent insulation, weather resistance, and durability. It requires no maintenance and offers strong decorative appeal with reliable protection.
Technical Specifications
| Fence Height (cm) | Panel Width | Wire Diameter | Mesh Size (mm) | Folds No. | Post Style | Post Size (mm) | Post Length (cm) |
|---|---|---|---|---|---|---|---|
| 103 | 200cm, 225cm, 250cm | 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm, 8.0mm | 50×50, 50×100, 50×150, 50×200, 60×120, 75×150 | 2 | Square post 1 | 40×60×1.5 | 150 |
| 123 | 2 | 40×60×1.8 | 170 | ||||
| 150 | 2/3 | 40×60×2 | 197 | ||||
| 153 | 2/3 | Square post 2 | 60×60×1.5 | 200 | |||
| 170 | 3 | 60×60×1.8 | 217 | ||||
| 173 | 3 | 60×60×2 | 220 | ||||
| 180 | 3 | 60×60×2.5 | 227 | ||||
| 193 | 3 | Peach post | 50×70 | 240 | |||
| 200 | 3/4 | 70×100 | 250 | ||||
| 203 | 3/4 | Holland post | 48×1.5 | 250 | |||
| 240 | 4 | 290 |
Surface Treatment
- Hot-dip Galvanized: Provides electrochemical protection to prevent steel rusting from inside to outside
- Zinc Phosphate: Enhances the adhesive power of coated film to base steel
- Epoxy Zinc-rich Powder Coat: Offers excellent antiseptic performance and impact resistance
- Polyester Color Coat: Provides good wear and UV-stability with long anti-dirty performance and self-cleaning
Color Options: All our fences can be powder coated in a color of your choice.
Application Scenarios

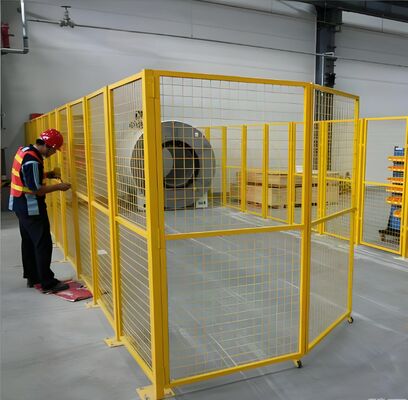

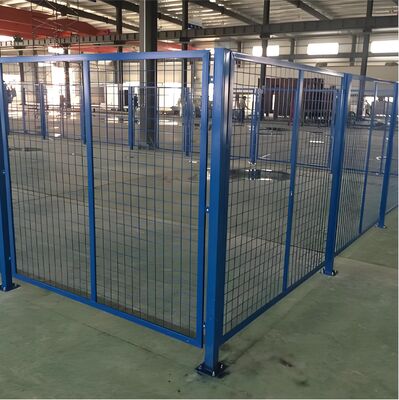

- Robot Workstation Isolation: Surrounding automated machinery or robotic arms to prevent accidental contact and ensure operator safety
- Warehouse Logistics Sorting Areas: Dividing storage zones for efficient material handling and segregating high-traffic areas from restricted zones
- Production Line Segmentation: Separating assembly lines or hazardous equipment areas to streamline workflows and comply with safety regulations
Product Advantages
- Different from woven wire mesh fences - line welding processing provides more firm structure and longer service life
- Hot dipped zinc coated welded wire fence offers thicker zinc plating than electro galvanized with stronger zinc plating adhesion
- PVC coated welded wire fence has more colors available than galvanized welded fences
- Multiple surface treatment options: electro galvanized, hot-dipped galvanized, PVC coated
Usage Applications
- Security for construction sites and private property
- Security for residential housing sites and schools
- For major public events, sports, concerts, festivals, gatherings
- Mainly used as isolation fences or safety fences for roads, railway
- For traffic control and crowd control
Packing Method
Packaged in Metal Pallet
